PPH One Piece Filter Housing
PPH One Piece Filter Housing

PPH One Piece Filter Housing

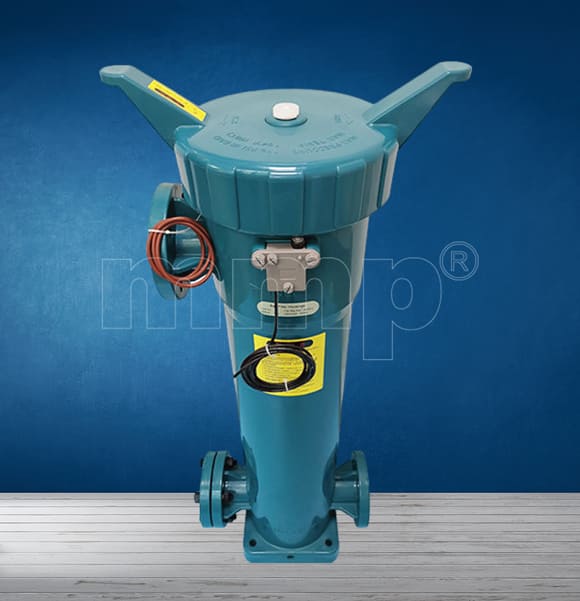

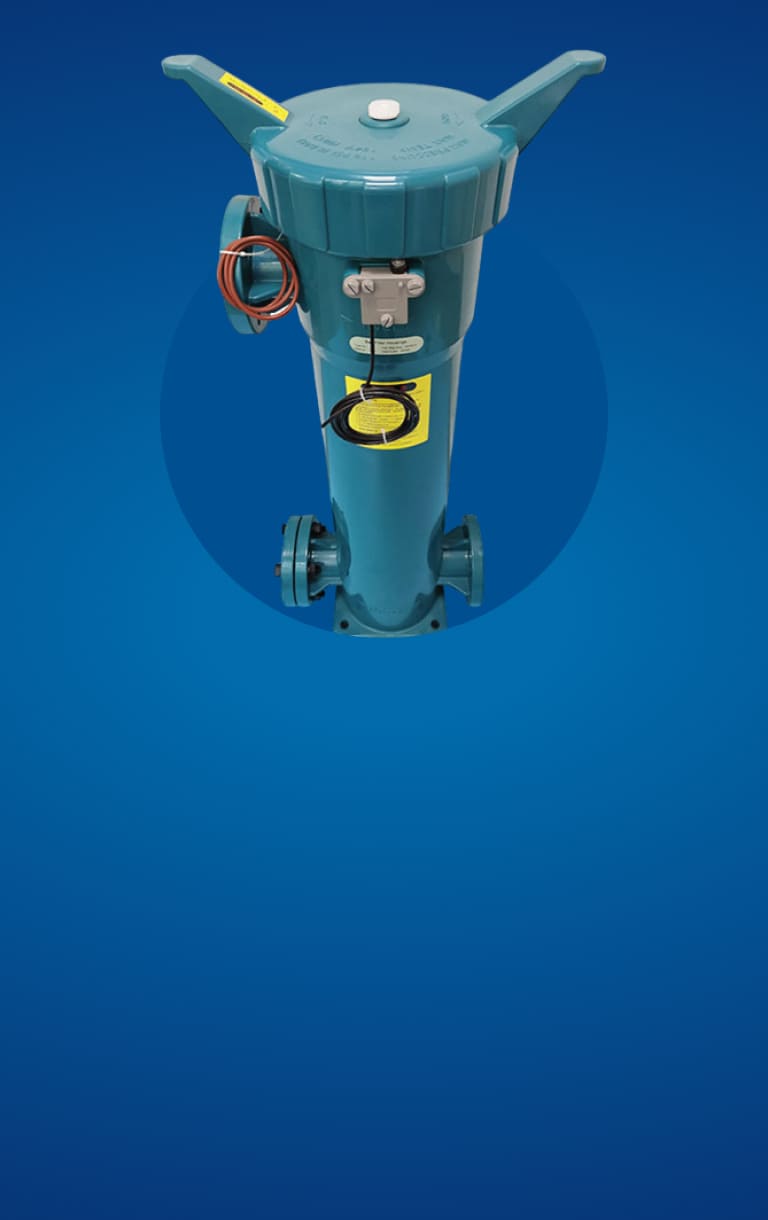

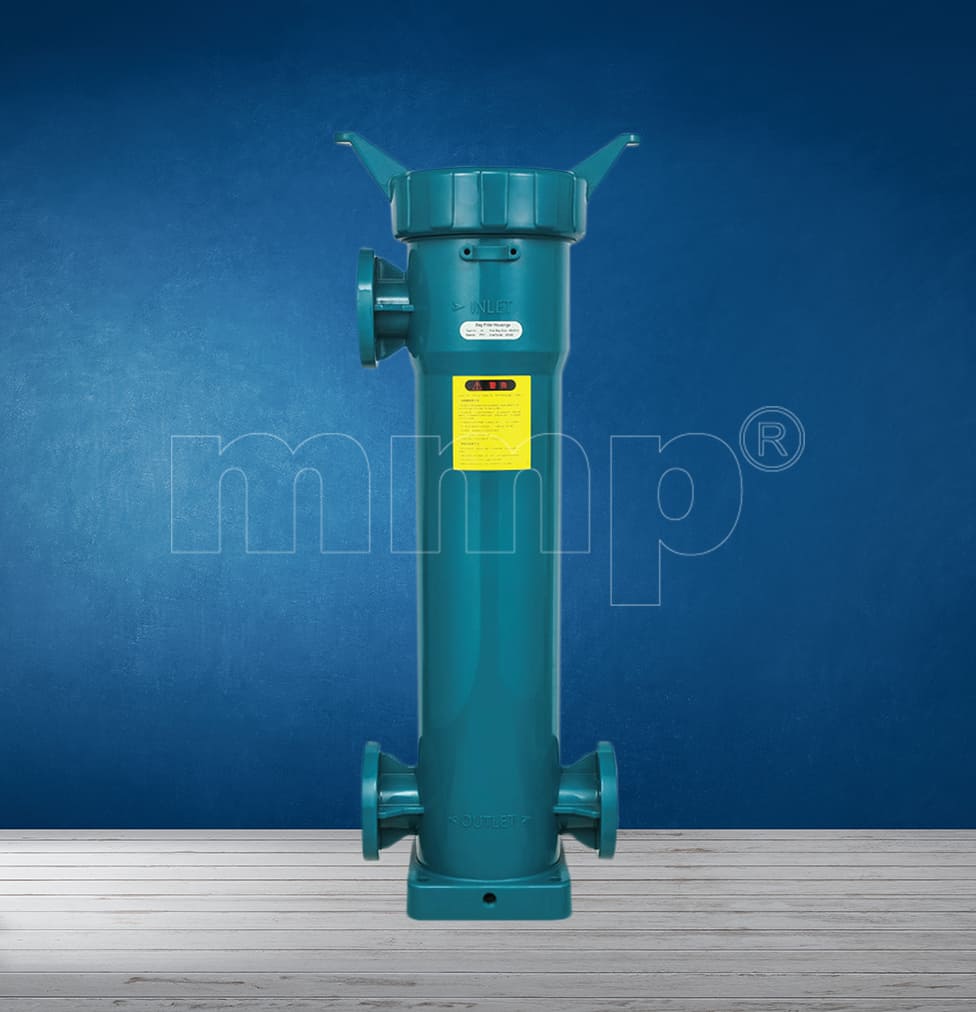

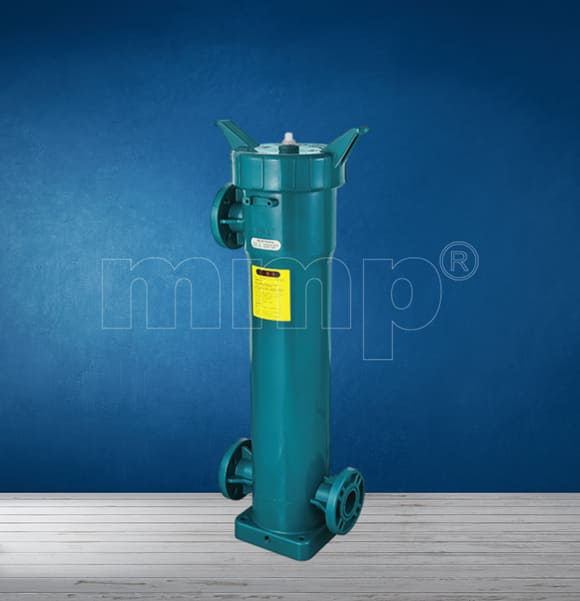

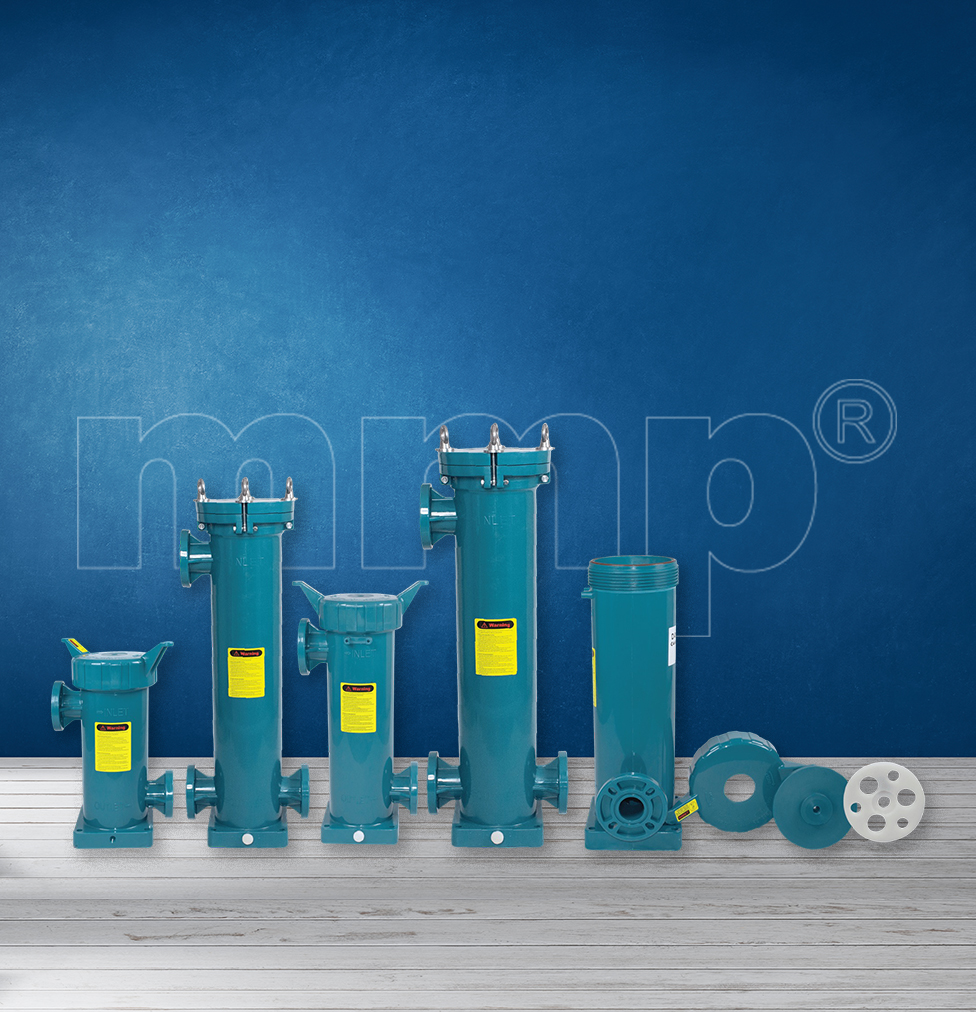

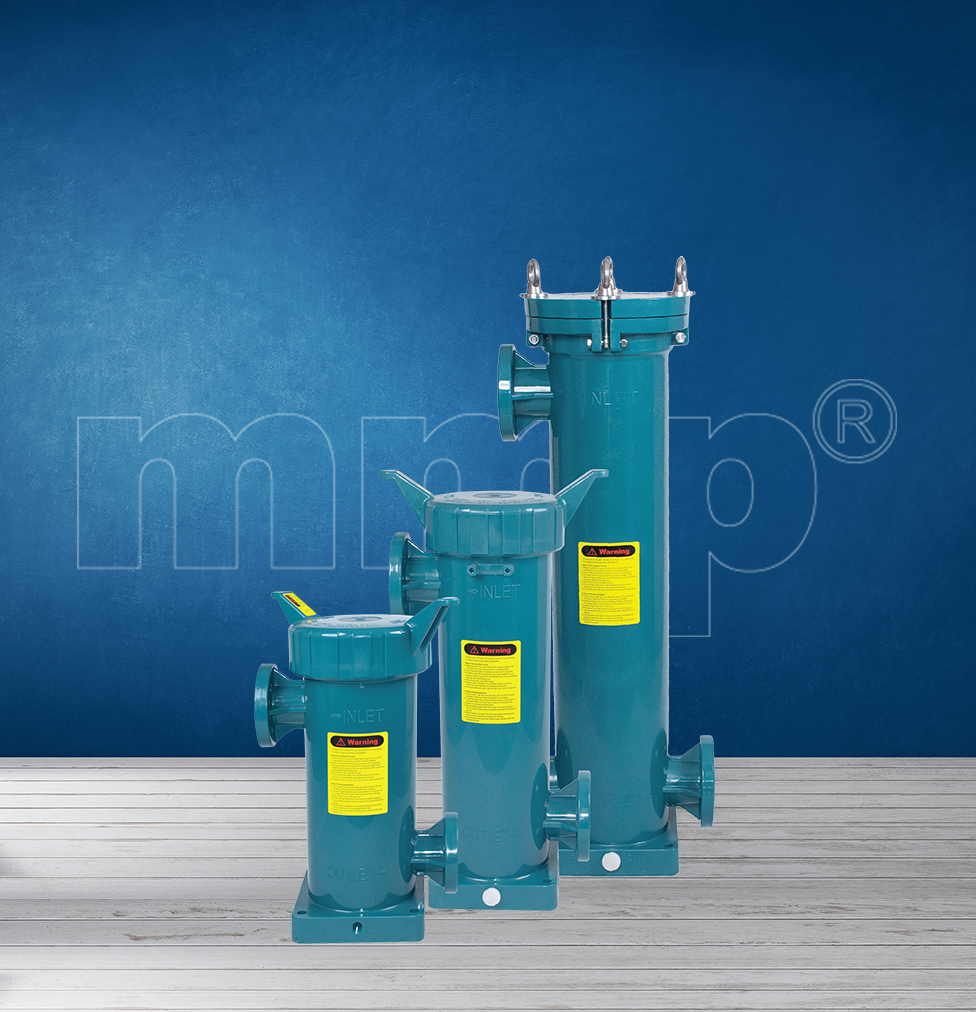

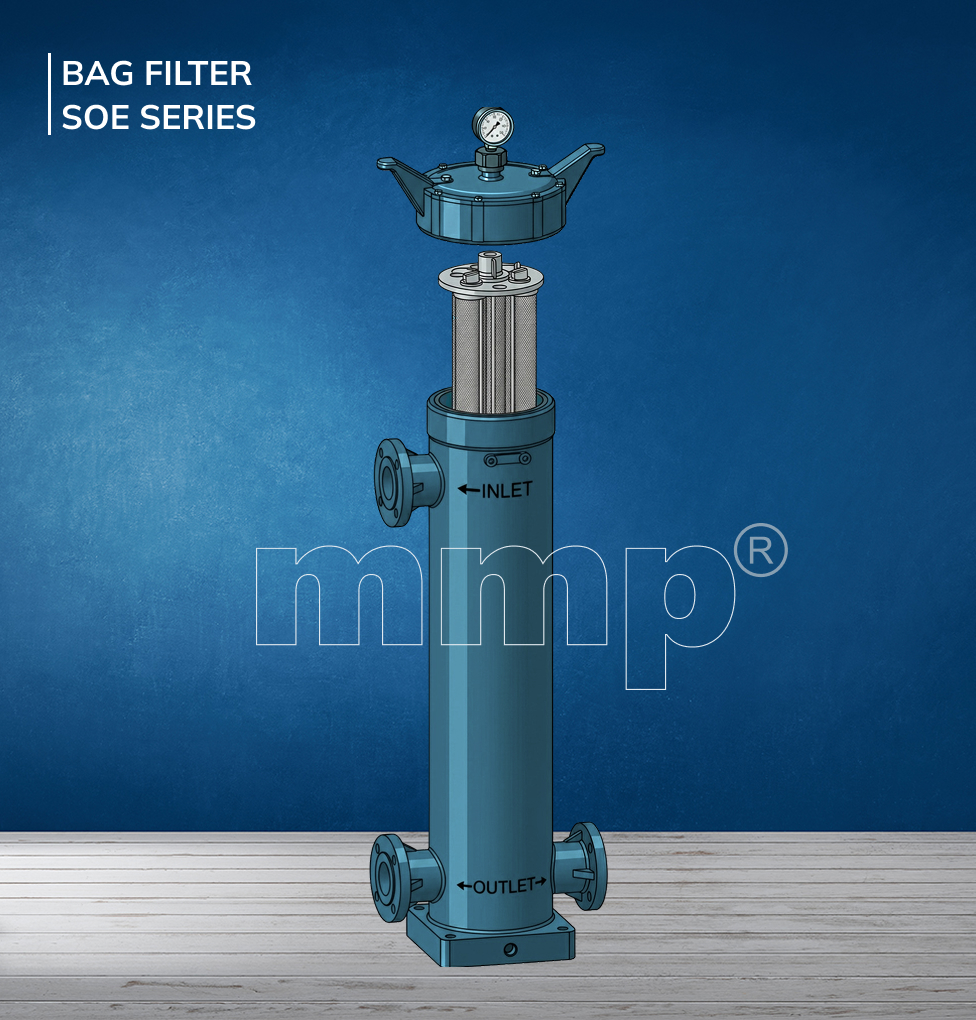

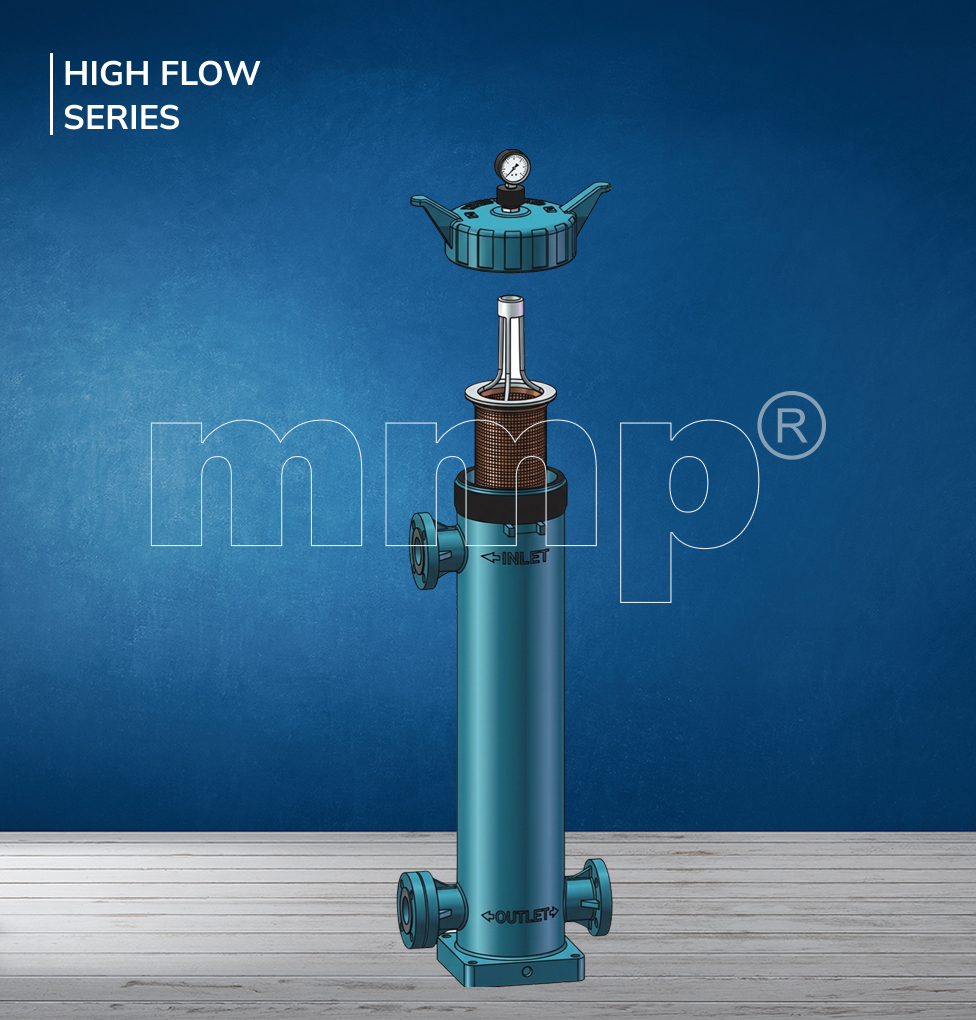

PPH one-piece filter housing offers durable, industrial filtration solutions made from polypropylene.

These housings are engineered to withstand corrosion, chemicals, and high temperatures, making them dependable in challenging industrial environments Their streamlined construction simplifies installation and maintenance by reducing the number of components, ensuring consistent and efficient filtration.

PPH One Piece Filter Housing
PPH One Piece Filter Housing
PPH One Piece Filter Housing
PPH One Piece Filter Housing
PPH One Piece Filter Housing
Model

MMP: Company, F: One-piece filter housing

Filter Bag Size
  • 1: φ7"x17"L(φ180x430mm)
  • 2: φ7"x32"L(φ180x810mm)
  • 3: φ4"x15"L(φ105x380mm)
  • 4: φ6"x20"L(φ150x510mm)
  • 6: φ7"x22"L(φ180x560mm)
Upper Cover Style
  • A: Screw top cover, B: Lifting ring gland
  • AX: Screw top cover, the water inlet and
  • outlet are union type.
Main Material
  • PPH
Upper Cover Joint
  • D: Internal tooth PT1/2
  • (with plug, without pressure gauge),
  • R: External tooth PT1/2 connector
  • (with pressure gauge),
  • E: Exhaust valve (with pressure gauge)
Protection Switch
  • None: Without protection switch, K: Install protection
  • switch (micro switch type)
