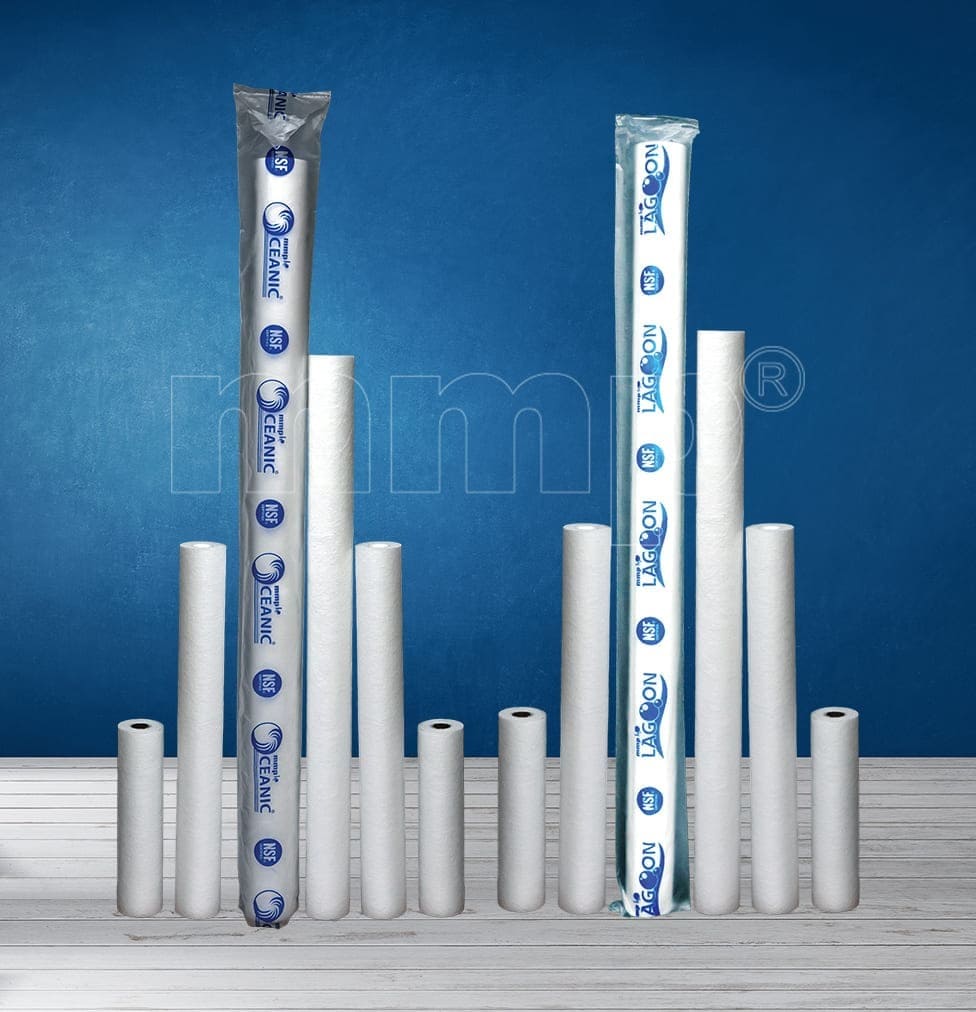

PP Spun Filters

PP Spun filters manufactured by mmp are widely used as pre filter of final filter for industrial. This spun filter cartridges are available in the complete range of micron ratings from 0.5 to 120 and lengths from 5" to 70". They are widely used in operations in chemical processing, pharmaceutical, food & beverage, and cosmetics industries.

PP Spun Filter Cartridge Manufacturer and Supplier

PP Spun filters also referred to as PP spun filter cartridges, spun polypropylene filters, spun water filters, or spun sediment filters are highly efficient having 100% pure polypropylene filter media. It has excellent particle retention with broad chemical compatibility. The cartridges are offered with or without thermally bonded endcaps for assured reliable filtration across a diverse application range.

mmp is the market leader in manufacturing and supply of custom PP spun filters to fit the specifics of the filtration process in industries such as water treatment, pharmaceuticals, chemicals, food & beverages, and oil & gas. Our durability-engineered spun filters make them last longer and provide high-flow performance with superior filtration, especially for critical applications requiring maximum purity.

mmp filters are available in a wide range of micron sizes and lengths to accomplish particular operational requirements. Spun filter cartridges from mmp for sediment removal, acidic chemicals to protection of sensitive products against contamination, maximize efficiency, minimize downtime, and result in the finest possible filtration outcomes. At mmp, you get best-in-class solutions that provide far more than the required standards for the industry but help you increase the life of your filtration systems and their performance.

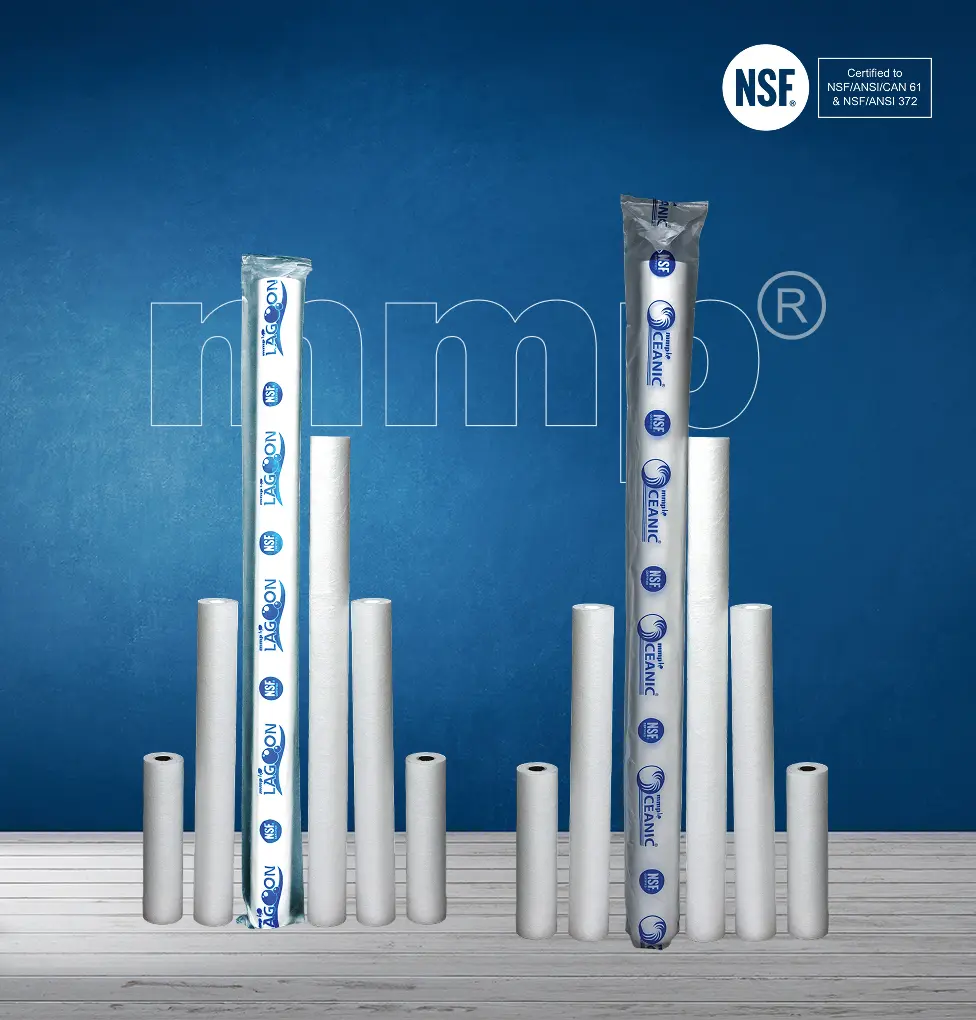

PP Spun Filter
Technical Name

PP Spun Melt Blown Filter Cartridges (medium density)

Raw Material
  • Virgin Polypropylene
ID
  • 27-35mm±
OD
  • 50-63mm±
Length
  • 5”-70”
Microns
  • 1-100µ
Construction
  • Polypropylene fibres are extruded through tiny holes under pressure and high temperature on a rotating mandrel, forming three layers for gradient filtration.
Flow
  • 1m³ per hour per 10” at pressure of 2.5Kg/cm²
Temperature
  • Max. 60° C

Our PP spun filter is one of the cost-effective solutions for the removal of taste, odor, and colour from liquids. Being 100% polypropylene, it has good thermal and chemical resistance, thus ideal for high-temperature or chemical-intensive applications. It is also highly used in many water treatment and chemical-processing plants not only it is cost-effective but also environmental-friendly

mmp's PP spun filters are manufactured to have a long service life, thus permitting less maintenance, with very minimal cases of system downtime. Available in several micron ratings and sizes, it assures efficient and reliable filtration for a wide range of industrial applications.

Feature Description
Material Made from high-quality, pure polypropylene.
Chemical & Thermal Compatibility Suitable for use with various chemicals and temperatures.
Sizes Available in multiple sizes to meet diverse applications.
Seamless Construction Ensures durability and reliable performance.
Easy & Safe Disposal Can be safely disposed of via incineration, shredding, or compaction.
Multi-Layered Structure Provides high dirt-holding capacity.
Low Pressure Drop Allows efficient flow with minimal resistance.
High Dirt-Holding Capacity Retains more particles, enhancing efficiency.
Long Service Life Cost-effective with extended filter life.

Industrial Process Water Filtration: PP spun filters removes particles and contaminants present in water to make it processable in the industries.

Chemical Processing: Spun filter cartridges are designed to handle corrosive and reactive chemicals due to their wide compatibility with chemicals.

Pharmaceutical Industry: For the production of drugs and sensitive products, polypropylene spun filter cartridges deliver high-purity levels.

Electronic / Plating Line: PP filter cartridges spin out the contaminants from the plating solution so as to maintain the purity of electronic products.

Coating: Melt-blown spun filters filter out the impurities in the coating material for easy application and product consistency.

Oil Industry: Removal of particulates and impurities present in oil processing by PP-spun filters increases the cleanliness of the end products.

Food and Beverage Industry: Products that pass through spun filter cartridges ensure the removal of sediments and impurities without compromising on the taste and quality standards.

Paint Industry: PP Spun Filter assures a productive filtration of paints and coatings to avoid defects due to particulates.

RO Plant: PP spun filters will act as a pre-filter protecting the RO membranes by removing large particles.

FAQs About PP Spun Filters

A PP Spun filter, also known as a PP spun filter, is a polypropylene-based depth-filter cartridge that is designed to remove particulates, impurities, and contaminants from liquids effectively. It has a number of industrial applications.

Change your spun filter cartridge when you see a big reduction in flow rate, increased pressure drop, or if the filter is visually discoloured or clogged. Regular servicing can be crucial for peak performance.

While PP spun filters and sediment filters do the job of removing particulates from liquids, spun filters, including PP spun filters, use a depth filtration mechanism in which it captures the particles throughout the filter media, as opposed to sediment filters that mainly remove larger pieces and particles from the surface.

PP spun filters are highly versatile and are applied in water treatment, pharmaceuticals, food and beverage, chemical processing, and oil. Their versatility makes them ideal for many applications.

Spun filter cartridges such as the polypropylene spun filter cartridges are 100% virgin polypropylene, which means that the material is totally free from impurities and there is excellent chemical compatibility with products.

The max temperature and pressure ratings of PP spun filter cartridges are usually manufacturer-specific. However, they can typically operate at temperatures up to 60°C (140°F) and pressure ratings up to 5-10 bar, again depending on the design.

Yes, as a leading spun filter cartridge manufacturer and supplier, mmp offers customizable PP spun filters designed to meet specific filtration requirements, including various retention ratings and sizes.

To install a spun filter cartridge, ensure the system is turned off. Remove the old cartridge, clean the housing, and insert the new spun filter cartridge securely, ensuring proper alignment. Refer to the manufacturer's instructions for detailed guidance.

PP spun filters are available in various sizes, including common configurations like spun 20” x 4.5” and spun 20” x 2.5”, as well as other custom dimensions to suit different applications.

Yes, spun filter cartridges are commonly used for pre-filtration before RO systems. They effectively remove larger particles and sediments, protecting the reverse osmosis membranes and ensuring longer service life and optimal performance.
