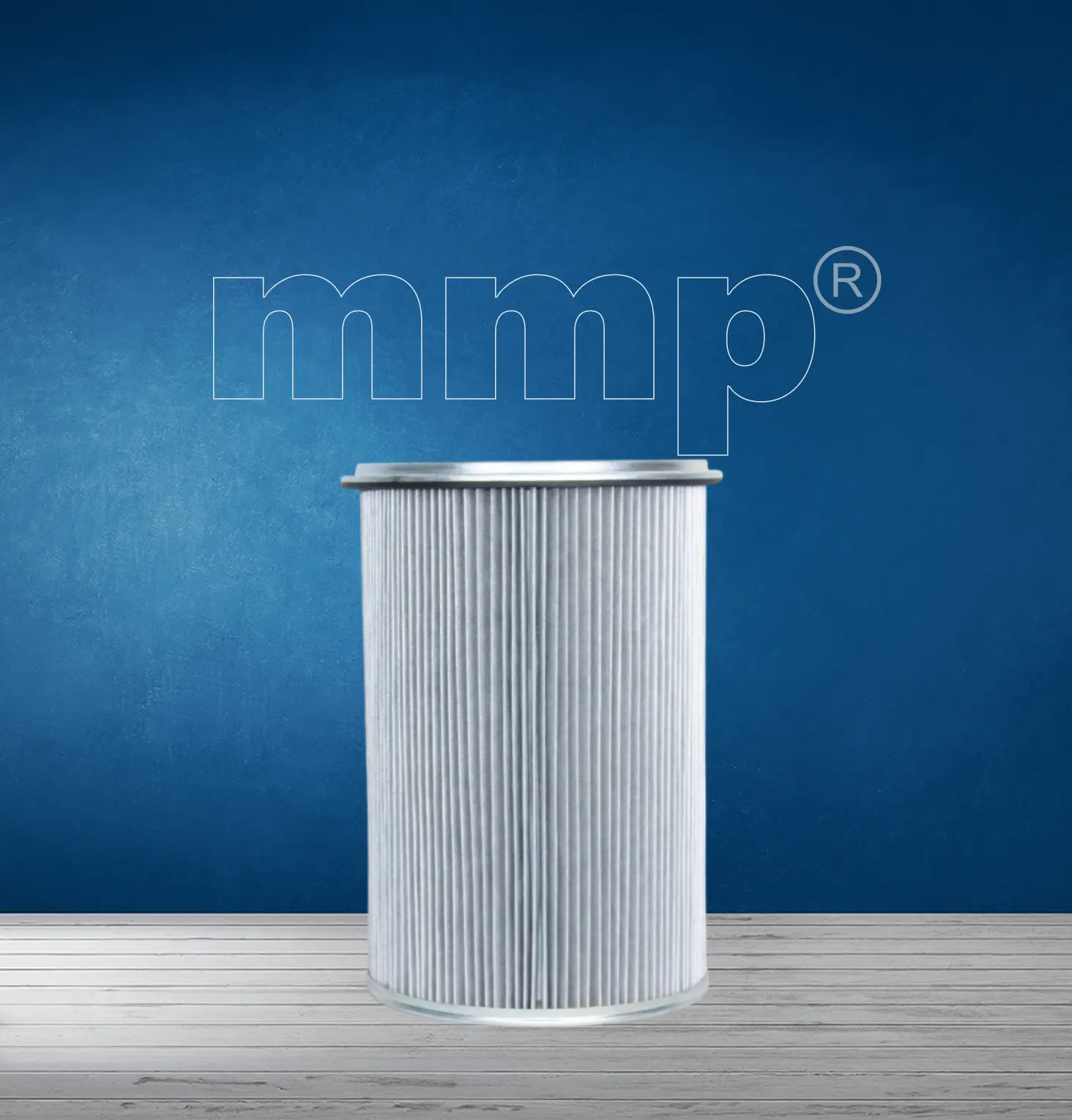

Pleated Cartridges

Experience improved flow and longevity.

Pleated Cartridges, featuring Spun bonded fabrics (Polypropylene, Aramid, PPS, PTFE) and PTFE coating options. Customize pleat depths, top & bottom materials, and fitments for a tailored solution to meet your specific filtration requirements.

pleated-cartridges
Technical Name Pleated Cartridges
Fabric
  • Spun bonded
  • Polypropylene,
  • Aramid (Nomex),
  • PPS,
  • PTFE
  • Cellulose
Coating on Fabric
  • PTFE membrane lamination
  • Oil and Water repellent
  • Antistatic
  • Oil and water repellent + antistatic
  • PTFE coating


Pleats
  • 16mm – 48mm (standard pleats)
  • As required by the customer
Top & Bottom
  • SS
  • Aluminium
  • MS
Fitment
  • 3 lugs/Din/PCD type
  • Loading from top or from bottom as required
Length
  • 3 Lug: 150, 222 & 325mm size
  • Din Type Size: as required by the customer
  • PCD Type Size: as required by customer
OD
  • 3 Lug: 150, 222 & 325mm size
  • Din Type Size: as required by the customer
  • PCD Type Size: as required by customer
ID
  • According to OD
Length
  • As required by customer
