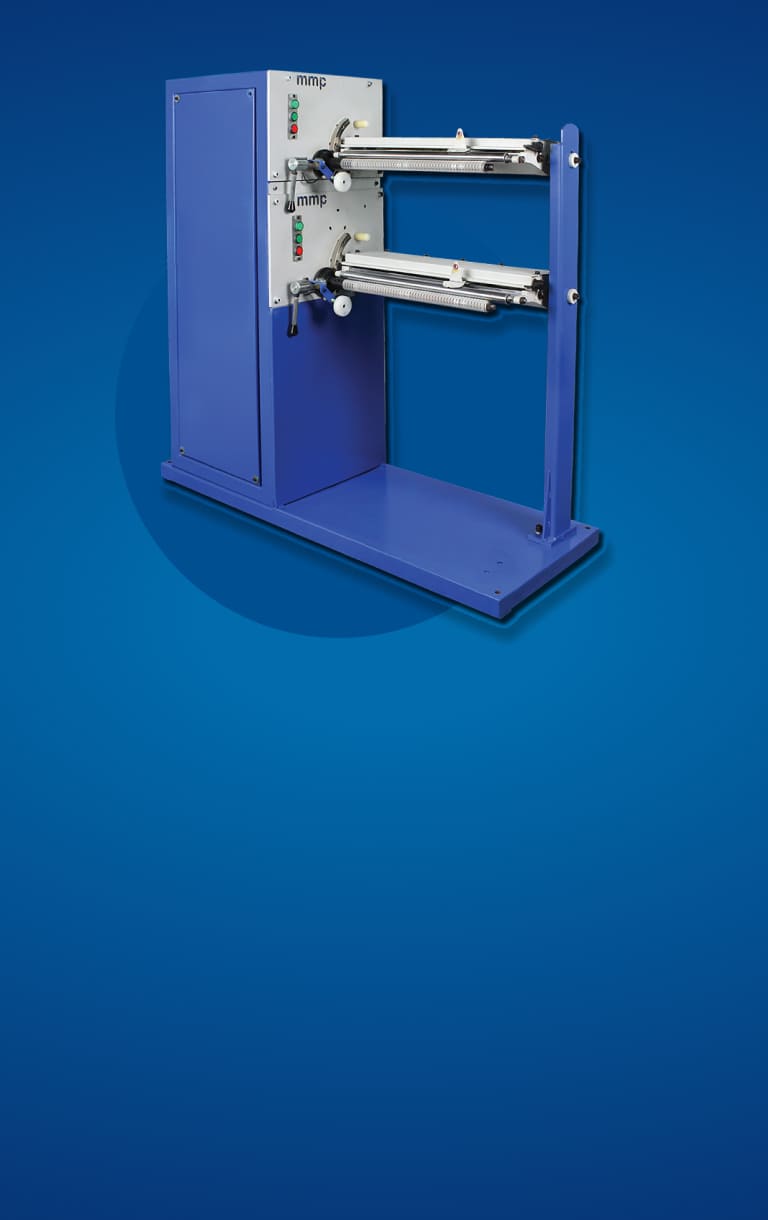

Wound Filter Cartridges Machine

High-precision winding machines for durable, efficient wound filter cartridges.

Winding Machine For Wound Filter Cartridges

Our fully Make-In-India machine, designed by our experts to cater specifically to the unique needs of the consumers worldwide.This advanced wound filter making machine is engineered to efficiently produce wound filters of various sizes and materials, offering unparalleled customization capabilities.

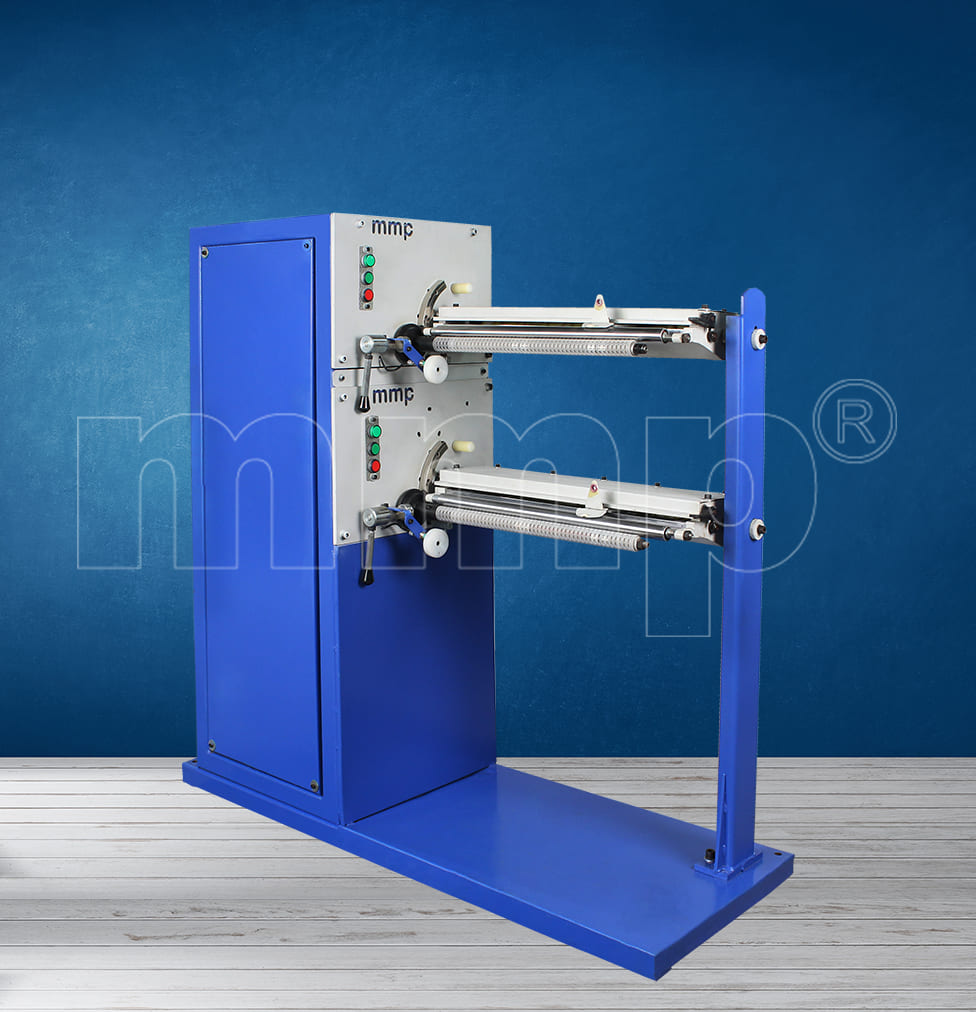

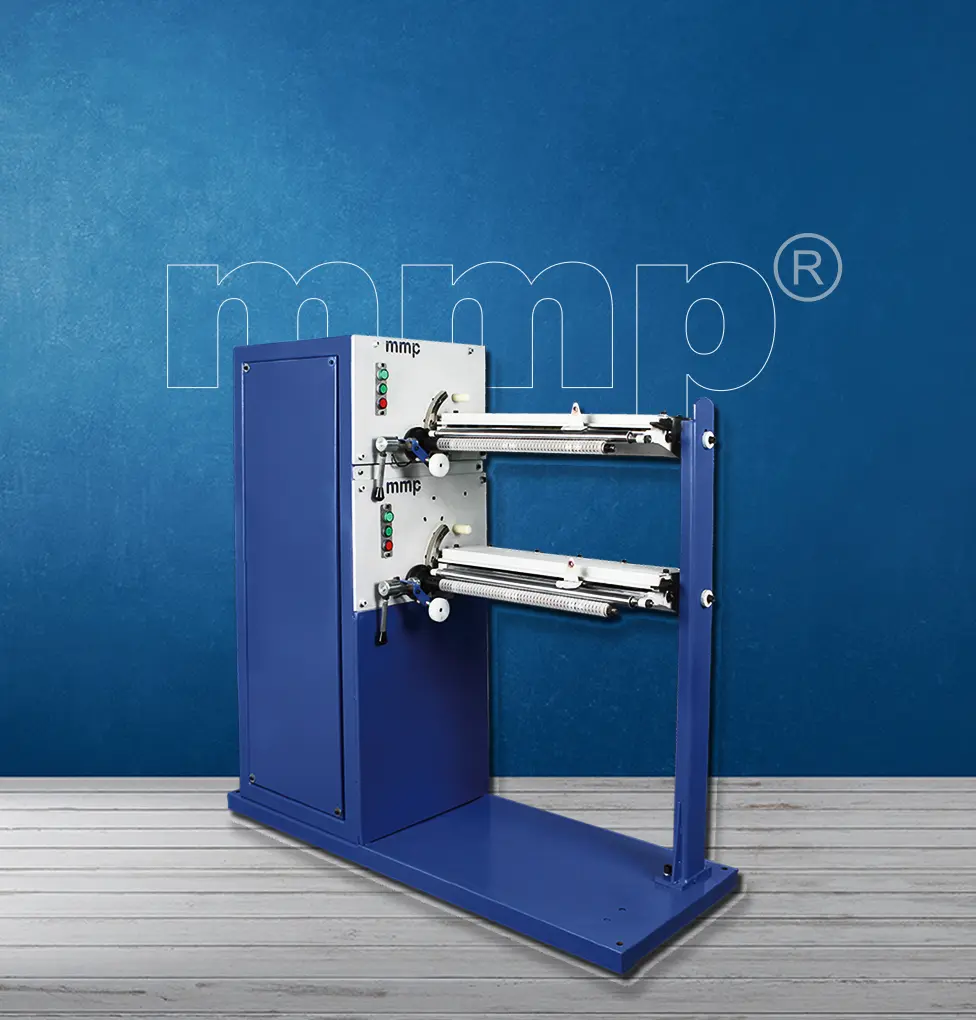

1st Generation: Electromechanical Winding Machines

In our early stage,we launched our Electromechanical String Wound Filter Winding Machines capable of producing:

  • Cartridge lengths from 5 inches to 70 inches
  • Micron ratings from 0.5 µ to 100 µ.
Wound Filter

Key Features and Benefits

  • Precision Control: Equipped with a variable AC frequency drive and motor for enhanced precision and control over the winding process, with adjustable speeds.
  • Versatile Power Options: Operates on standard or single-phase power (AC 220V/50HZ).
  • Dual Spindle Operation: Features two spindles to produce two wound filter cartridges simultaneously, each with different or same lengths.
  • Advanced Automation: Automatic stop sensors and manual timing gear ensure precise winding patterns.
  • Material Adaptability: Supports winding core materials such as Polypropylene, Stainless Steel, or Tinned Steel.

Discover the Power of Inline Filter Cartridge Winding Machine

Download Brochure

High Efficiency

Maximizes production output with minimal downtime.

Customization

Flexible settings to meet specific filter size requirements.

Precision

Timing gears ensure accurate and consistent winding patterns.

Reliability

Robust construction and almost maintenance-free operation ensure long-term reliability.

TECHNICAL SPECIFICATIONS

Machine Name String Wound Filter Machine
Drive and Motor Variable AC frequency drive and motor
Power 220V/50HZ, Single Phase
Winding Core Material Polypropylene, Stainless Steel, or Tinned Steel
Winding Tube Diameter 28mm
Winding Lengths Available 222, 235, 250, 254, 500, 508, 750, 762, 1000, 1016, 1270, 1778 mm
Automatic Stop Sensor Activates at desired cartridge diameter
Winding Outer Diameter (OD) 45 mm 200 mm
Pattern and Precision Achieved through timing gears
Maintenance Designed for minimal maintenance

2nd Generation: Electronic Ratio-Based Winding Machines

The Winding Machine for Wound Filter Cartridges features advanced technology with a variable frequency motor, servo motor/drive, and automatic stop sensor. With versatile winding core and tube options, this machine ensures precise, gear-free filter pattern changes and low maintenance for efficient operation.

Building on our experience, we introduced Electronic ratio based Winding Machines featuring:

  • Cartridge Range: 5” to 70” lengths, 0.5 µ to 100 µ micron ratings
Wound Filter Machine
Technical Name Software Supported Electronic String Wound Filter Machine
Technical Details
  • Encoder with variable frequency motor
  • Servo motor / Servo drive
  • Power : AC 220V/ 50HZ single phase
  • Winding Core Material : Polypropylene, Melt Blown, Stainless Steel, Tinned Steel
  • Winding Tube : 28mm
  • Winding length :  250/254mm, 500/508mm, 750/762mm, 1000/1016 mm
  • Automatic stop sensor
  • Winding OD Diameter : 200mm
  • The pattern and precision of winding by software
  • Ratio Input for winding filters
  • No gears required for changing filter pattern
  • Low maintenance required

3rd Generation: Smartwind 360 Fully Automatic Multi-Layer Winding Machine

With a commitment to continuous innovation, MMP Filtration launched the Smartwind 360 a next-generation, fully automatic, multi-layer winding machine.

Wound Filter
Wound Filter

Key Features

  • 360 Multi-Layer Winding: Yarn winding from all angles, providing complete coverage and optimized layering.
  • Advanced Programmability: Precise rhombus pattern definition in axial and circumferential directions.
  • Custom Micron Control: Repeatable micron ratings through programmable yarn spacing and cartridge length.
  • Structural & Functional Benefits:
    • Enhanced filtration depth through multiple layers.
    • Improved mechanical strength.
    • Superior bonding between layers.

Advanced Wound Filter Production Machine for Cartridge Manufacturing

From our first electromechanical systems to the SMARTWIND 360° multi-layer platform, MMP Filtration Pvt. Ltd. has consistently advanced winding technology to meet evolving filtration demands. Our commitment to precision, performance, and efficiency positions us as a pioneer in programmable, automated filter cartridge solutions. We offer wound filter cartridge machines worldwide, including the USA, UK, UAE, Italy, Russia, Canada, Australia, and more.
