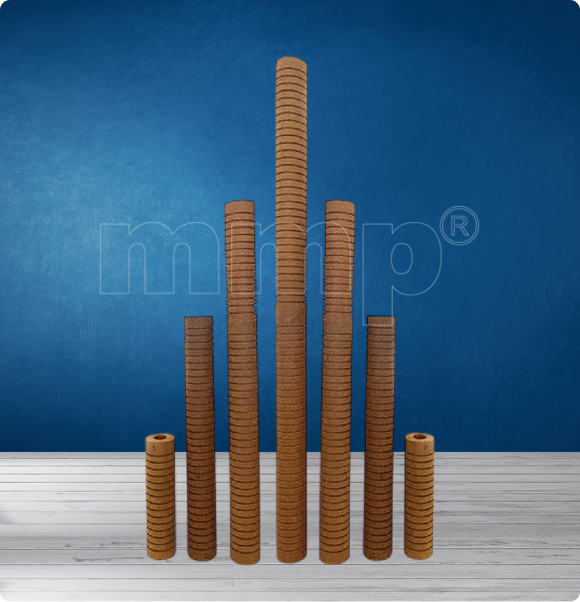

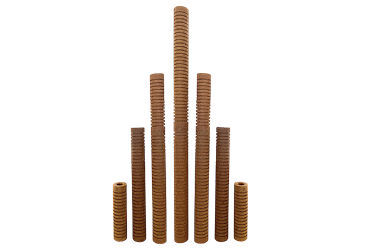

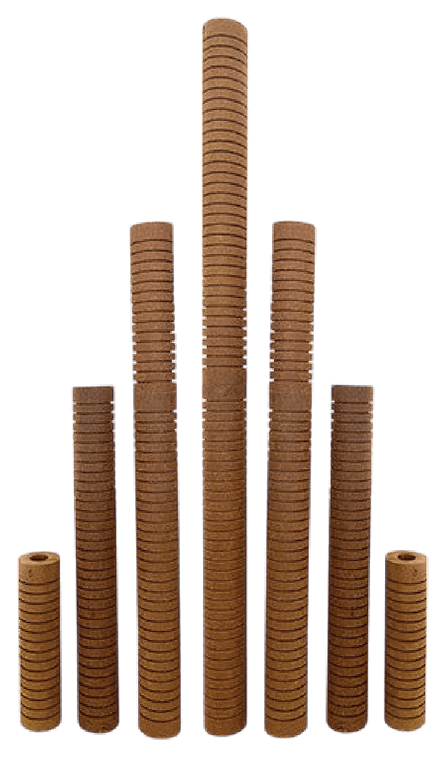

The mmp® MRB Series Cartridges feature a specialized filtration design that maximizes particle retention and extends service life, all while maintaining a durable, resin-bonded porosity structure. Perfect for filtering viscous fluids in industrial applications.

To ensure compatibility across a broad range of process fluids and performance demands, MRB series cartridges incorporate a carefully selected blend of advanced fibers. This blend creates a gradual tightening structure with uniform micropore size and high porosity, allowing larger particles to be captured on the surface while smaller particles are trapped deeper within. This design enhances retention capacity and extends the cartridge's lifespan, all while providing exceptional cartridge strength.

Available in both grooved and ungrooved versions, the mmp® MRB series resin-bonded filters are ideal for various applications, offering versatile and reliable performance for even the most demanding environments.

Operating Data*	RBF Series
Material	135°C
Operating Pressure	0.45MPa
Solvent Resistance	Expansion rate <2% (Ketones, Ethers, Phenols, Alcohols etc.)
Anti-shrinkage	No shrinkage and depression
Inner Diameter	29mm
Outer Diameter	63-65mm
Length	3.75 to 40 inch
Micro Rating	1, 5, 10, 25, 50, 75, 100, 125, 150, 200μm

Ordering Information

Model	Micron	Length	Adapter
MRB	5=5µm	248 = 9.75inch	DOE = Double Open End

P/N.: MRB-5-248-DOE

*The information supplied above is based on analysis of production trend. This is subject to change without notice if future trends are adjusted. They are listed for information purposes only and not to be used as purchase specifications. Different lengths and micron ratings are available upon request.

Features and Benefits

Robust Structure

Two-stage design ensures stability, resisting collapse under high pressure.

High Dirt-Holding Capacity

Enhanced retention extends service life and efficiency.

Varied Micron Ratings

Available in multiple sizes to meet diverse filtration needs.

Chemical Resistance

Compatible with a wide range of industrial chemicals for versatile use.

mmp’s MRB Series Resin Bonded Filter Cartridges offer high dirt-holding capacity, graded porosity, and excellent chemical resistance. Designed for industrial use, they efficiently filter paints, adhesives, solvents, and viscous fluids under high-pressure conditions. mmp is a leading name in advanced filtration, delivering reliable and high-performance solutions across industries.
