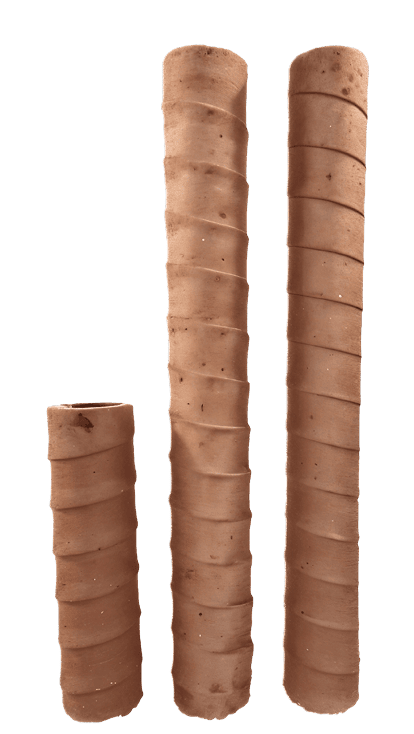

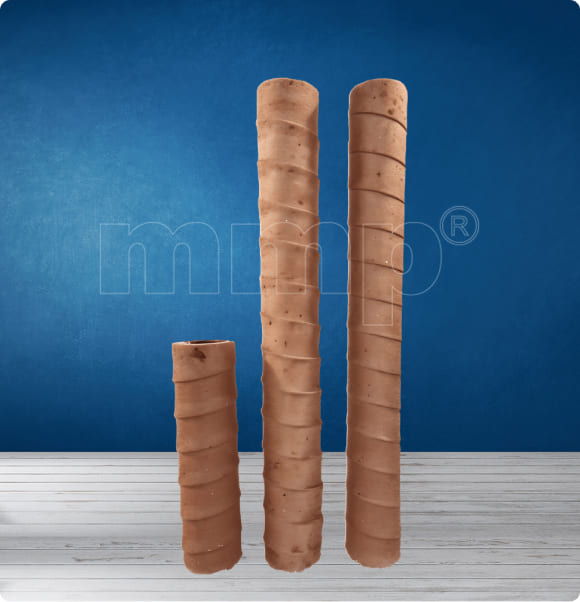

mmp® MAB Series Cartridges are designed with a unique multi-layer construction that maximizes particle retention and service life, while maintaining a durable, resin-bonded porosity structure. This makes them perfect for viscous fluid filtration applications. Engineered to provide high-efficiency filtration, these cartridges withstand high pressure and temperature, making them ideal for demanding industrial environments where performance and quality are essential.

To meet the diverse needs of various process fluids and filtration requirements, MAB series cartridges utilize a specialized blend of advanced fibers. This creates a gradual tightening structure with uniform micropore size and high porosity. This design ensures that larger particles are captured on the surface of the filter element, while smaller particles are trapped in the deeper layers, enhancing retention capacity and extending the cartridge's usage life-all with exceptional strength and stability.

Operating Data*	RBF Series
Material	135°C
Operating Pressure	0.45MPa
Solvent Resistance	Expansion rate <2% (Ketones, Ethers, Phenols, Alcohols etc.)
Anti-shrinkage	No shrinkage and depression
Inner Diameter	29mm
Outer Diameter	63-65mm
Length	3.75 to 40 inch
Micro Rating	1, 5, 10, 25, 50, 75, 100, 125, 150, 200μm

Ordering Information

Model	Micron	Length	Adapter
MRB	5=5µm	248 = 9.75inch	DOE = Double Open End

P/N.: MAB-5-248-DOE

*The information supplied above is based on analysis of production trend. This is subject to change without notice if future trends are adjusted. They are listed for information purposes only and not to be used as purchase specifications. Different lengths and micron ratings are available upon request.

Features and Benefits

Robust Structure

Two-stage design ensures stability, resisting collapse under high pressure.

High Dirt-Holding Capacity

Enhanced retention extends service life and efficiency.

Varied Micron Ratings

Available in multiple sizes to meet diverse filtration needs.

Chemical Resistance

Compatible with a wide range of industrial chemicals for versatile use.

mmp’s MAB Series Resin Bonded Filter Cartridges provide high-efficiency filtration with graded porosity, making sure of superior particle retention and extended service life. Built for high-pressure and high-temperature applications, they effectively filter paints, coatings, adhesives, solvents, and viscous fluids. mmp is a trusted leader in advanced industrial filtration, delivering innovative and reliable solutions across industries.
